H4-P5202DH1 Sensor Beacon
Bluetooth Temperature & Humidity Sensor
- IPX4 Waterproof without external sensor
- Up to 50000 groups of data logging support
- 3-axis accelerometer sensor with motion trigger.
- Button with SOS Trigger function
- 5-years lifetime with 2*AA lithium batteries
- iBeacon & Eddystone (UID, URL, TLM) and sensor in turn
Product Features
Advertising Beacon Device
Supporting BLE5.0
Ultra-low power consumption chipset NRF52 Serise
Support button trigger and motion trigger
Firmware updated via DFU
G-value, sampling rate and sensitivity of 3-axis accelerometer sensor can be configured
Customizable to increase NFC to wake up bluetooth (MOQ:1000pcs)
Logo and wristband color customizable (MOQ 200units)
Provided with your own configuration (MOQ 100 units)
100% Configurable Parameters via MokobeaconX Pro app (Android & iOS)
Temperature and humidity function can be selected one of it any time
Parameters

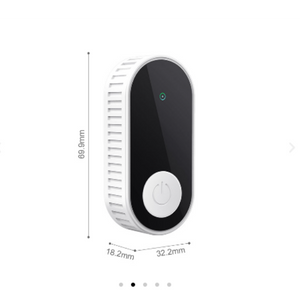

| Size(H*W*L) | 70mm x 32.2mm x 18.2mm |
| Connectivity | BLE 5.1 |
| Color | White |
| Material | ABS+PC & PMMA |
| IP rating | IPX4 |
| Battery capacity | 1200mAh | 2*AA Replaceable battery |
| Battery lifespan | 5 years |
| Flash | 2M Bytes (50000 groups data logging support) |
| LED | Red & Green & Blue |
| Accelerometer sensor | Optional |
| Barometric pressure sensor | Optional |
| Operating temperature | -20℃/ +60℃ (Body) -40℃/ +125℃ (Probe) |
| Temperature accuracy | ±0.5℃ |
| Humidity accuracy | ±0.3℃ |
| Certification | FCC | CE | RoHS | REACH |
