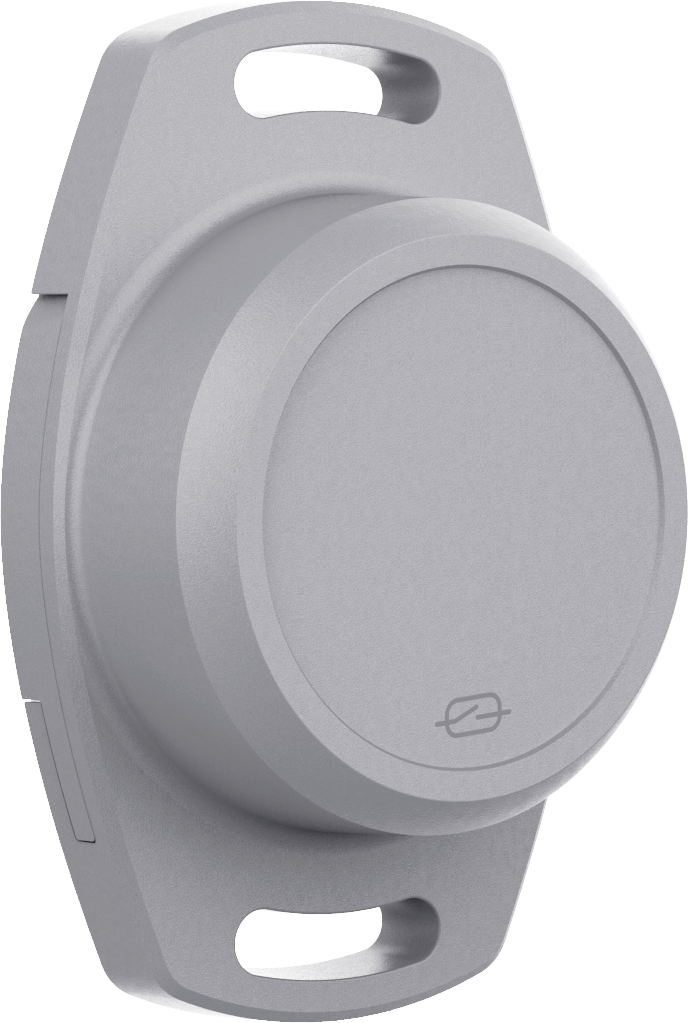

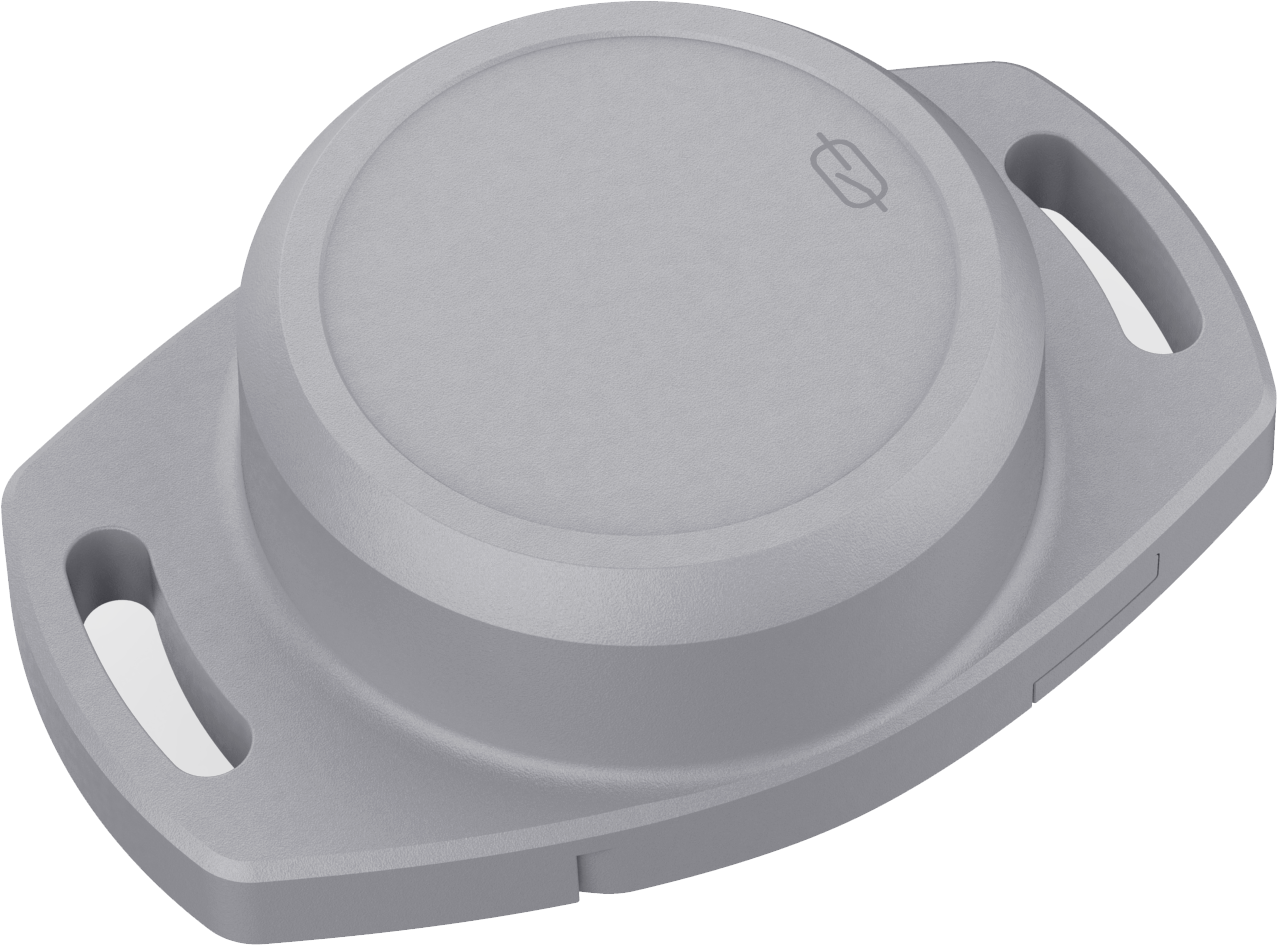

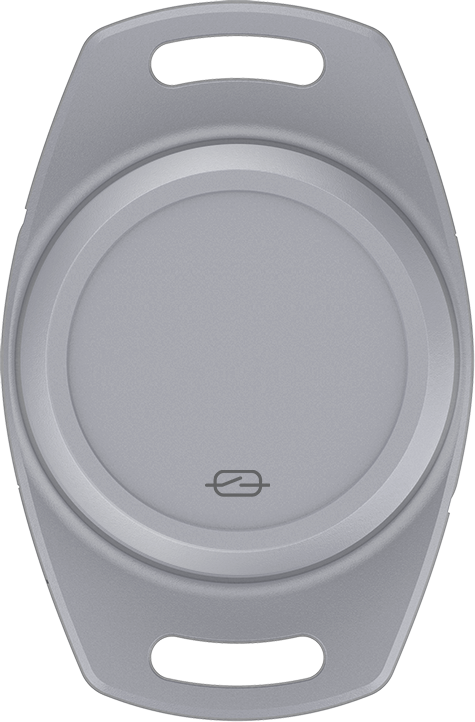

M2 Asset Traking Beacon + Wirepas Mesh
• Nordic nRF52832 SoC （Hardware is compatible with Bluetooth 5.1 ）
• Integrated 3-axis accelerometer and magnetic (Hall-effect sensor) switch sensors
• Accelerometer sensor for motion detection can identify whether the Beacon is moving
• Smartphone app (iOS & Android, and provide SDK) easily configures all parameters
• Wide broadcast range (up to 160 meters)
• Temperature and humidity sensor integrated
• Barometer integrated to assist the gateway to locate the asset label accurately
• Can store 100,000 + temperature and humidity data and door status records with storage flash
• Long-lasting 1000-mAh lithium coin battery (replaceable)
• Wirepas mesh supported
Description
Bluetooth Low Energy(BLE) is a wireless area network that allows people within its range to see its location easily, it can also be employed in the tracking of valuable assets.
The M2 BLE asset tracking beacon utilizes the Bluetooth low energy asset tracking technology. It is can be employed indoors or outdoors to monitor inventory or other important use cases vital to your organization.
It is portable and easy to install. You do not need specialized tools to set things up and running. It can be hung, screwed, or attached to a surface with a sticker.
The M2 asset management beacon gives you a range of up to 160 meters (in open spaces without obstacles). You can easily install the BEACONX PRO APP for your iOS or Android devices to connect with the device with ease.
Benefits of BLE asset tracking
Bluetooth low energy tracking techniques gives you the following benefits:
Data transfer using a BLE asset tracking device is quick
You get a broader range using a BLE beacon
Signals transmitted by beacons are more secure
BLE devices consume less power
BLE devices consume less power
It is cost-effective means of asset tracking
Beacons offer high broadcast capacity
They are easy to install
Beacons are used for indoor and outdoor purposes
They provide real-time geo-locations

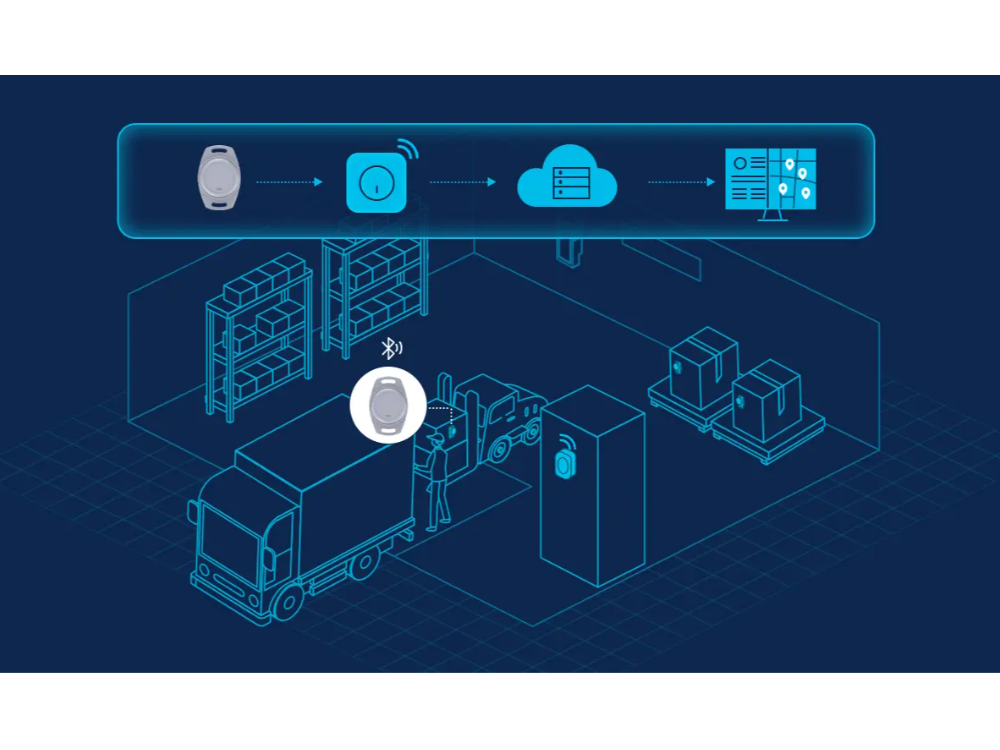

Warehouse&Inventory
Helps staff to easily locate items in the warehouse.
Vehicle monitoring
Easily identify and locate vehicles to be shipped to prospective customers.
Proximity security detection
It can inform personnel when they are close to dangerous pieces of equipment.
Health care equipment monitoring
It can help health personnel to quickly locate important equipment and critical machinery in hospitals.
Personal tracking
Beacons can be used to track person and dispatch those who are close to the spot
How M2 asset beacon works
Bluetooth beacons are similar to Wi-Fi networks – they transmit radio waves within a set range (up to 70 meters). The device repeatedly broadcasts a radio signal, which can be seen by other devices within its range.
The radio signals the beacon transmits are composed of numbers and letters which are transmitted at regular intervals (approximately 1/10th of a second). When a Bluetooth-enabled device, like a smartphone, is in the range of the transmitting device, it can see the beacon.
This is similar to lighthouses that permanently emit visible light which serves as navigational guides for sailors.
General Specs
General Features
Main Chip – Nordic nRF52832
Bluetooth – Bluetooth 4.2 (hardware compatible with Bluetooth 5.1)
Range – Up to 160 meters (in the open area and no obstacles)

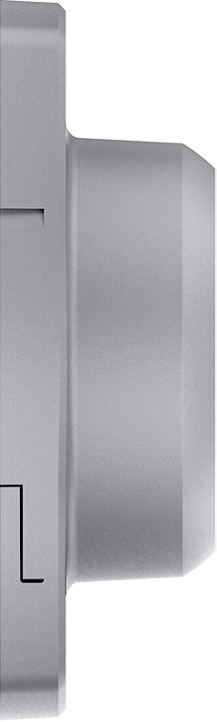

Dimension – 70mm x 46mm x 21mm
Weight – 33.5g (With battery)
Material – PC + ABS
Waterproof – IP67
Colour – Grey
Installation – Hang, Sticker, Screw
Button – Inner mechanical button
LED – Single red LED
Sensor – Omnipolar Hall-effect sensor for magnetic switch 3-axis accelerometer sensor (optional) Temperature and humidity sensor Barometer
Environmental
Operating temperature – General -20°C / + 60°C
-40°C / + 85°C can be customized
Storage temperature – -20°C / + 70°C (without battery)
10°C / + 25°C (with battery)
Humidity – 0% ~ 95% (non-condensing)
Power

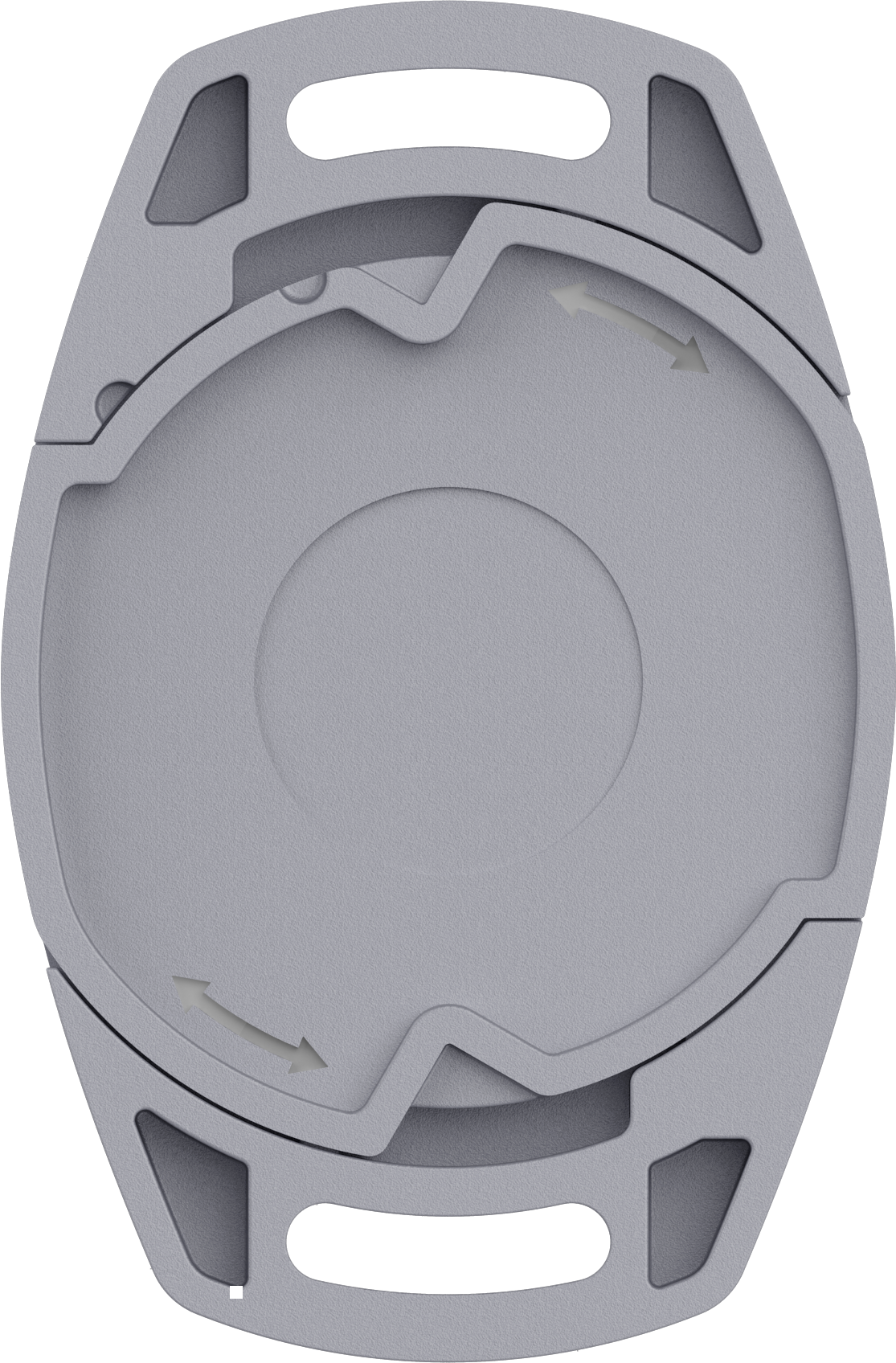

Power supply – Replaceable 1000mAh lithium coin CR2477 battery
Average current – 21uA (Default settings, without 3-axis G-sensor)
28uA (Default settings, motion detection is always active)
Lifetime – 4 years (Default settings, without 3-axis G-sensor)
3 years (Default settings, motion detection is always active)
Functions
Advertising format – Apple iBeacon
Google Eddystone (UID, URL, TLM)
MOKO BeaconX Pro sensor data ( with 3-axis G-sensor)
Multi-advertising – Support up to 6 active slots (Beacon can broadcast different advertising packets separately)
Power on/off – Press inner mechanical button Magnet approaching to pull-down hall effect sensor
Configuration – Advertising format and data/ Beacon Name
Tx Power/ Advertising interval Connection password/ Trigger options/ Sensor parameters
Sensor sampling – Broadcast or notify the 3-axis G-sensor data in real time (with 3-axis G-sensor)
Motion detection – 3-axis G-sensor identify whether the Beacon is moving to change the advertising status and data
Power saving mode – Motion detection stops Beacon broadcasting and make Beacon to sleep
Firmware update – Nordic DFU OTA/ J-link
Configuration APP – BeaconX Pro APP for iOS and Android Open APP SDK for customer to develop
Certifications – USA (FCC)
Europe (CE-RED, CE-LVD, CE-EMC, REACH, RoHS )
Other certifications or approvals can be customized
