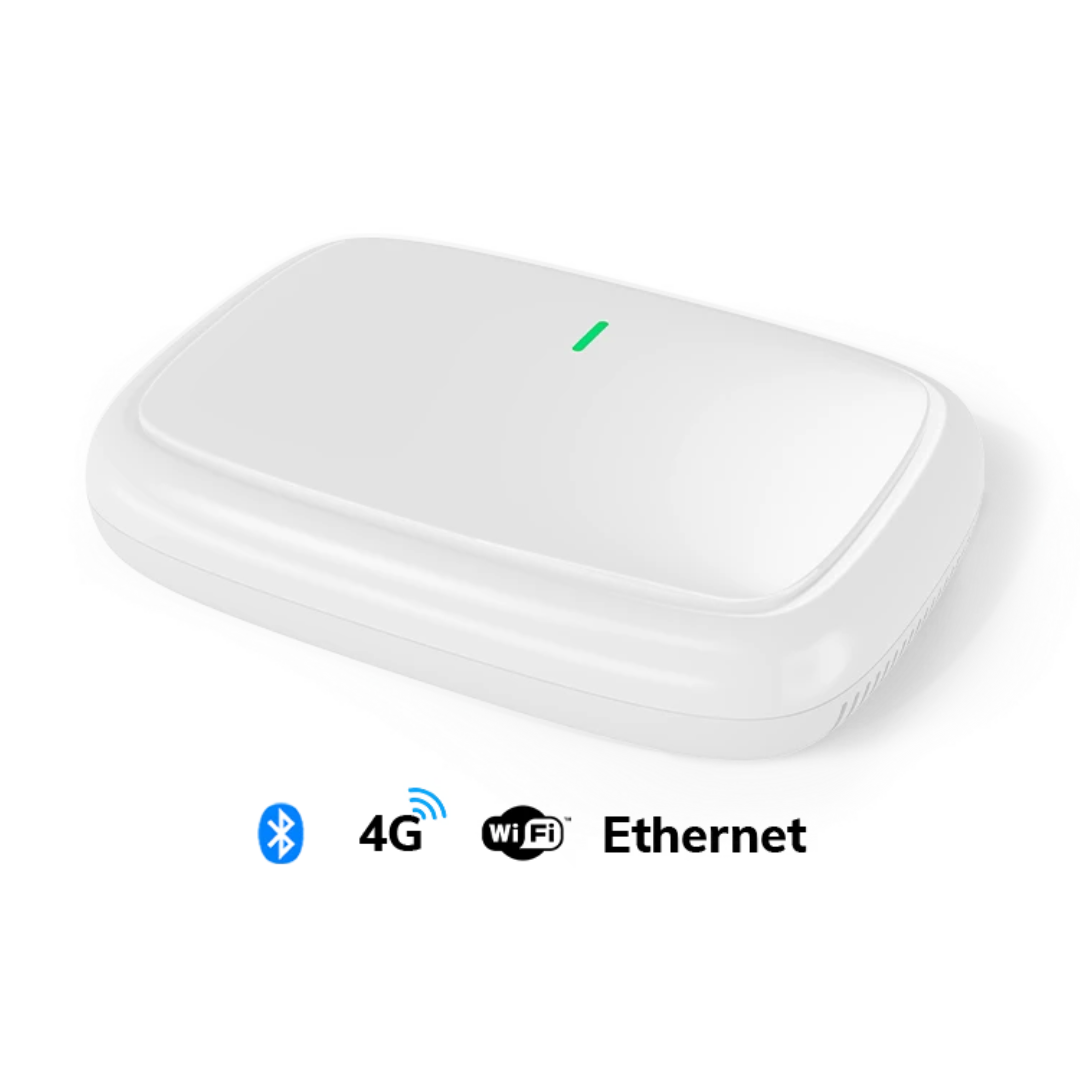

MG6 4G Bluetooth Stellar Gateway
MG6 gateway is a Bluetooth® LE smart indoor gateway with multiple networking options. Up to 600 meters (open area), it can upload data via WiFi/Ethernet/4G and is suitable for a wide range of applications such as factories, office buildings and hospitals. It is also ideal for logistics, warehouses, retail spaces, and exhibitions. The gateway covers a wide range of sensors and can be connected to the cloud platforms for real-time monitoring and control. It seamlessly integrates with other ble beacons and sensors and system platforms.
Product Features
- WiFi/Ethernet/4G
- Intelligent Network Switching
- Edge Computing
- Max Scanning Range of Up to 600m (Open Area)
- WPA/WPA2/WPA3
- Data Security (MQTT/HTTP/TCP)
Application Scenarios
Healthcare
Smart Buildings
Warehouses
Factories
General Specs
General
- MaterialABS+PC
- ColorWhite
- Size (DH)130*186*36 mm
- Power SupplyDC 12V/1A
PoE (IEEE 802.3af ) - Network ConnectionWiFi / Ethernet / LTE Cat.1
- Working EnvironmentIndoor
- Working Temperature-20~50℃
- Working Humidity5%~95%RH, no condensation
- Firmware UpdateOTA, LAN, TF Card
Bluetooth Specifications
- Bluetooth Frequency2.4-2.4835 GHz
- Bluetooth Bandwidth1Mbps / 2Mbps / 125Kbps
- Scan Range125Kbps: 400-600 M
1Mbps: 150-300 M (Open Area)
LTE CAT1
- Frequency BandCN(FDD):B1/3/5/8/9
CN(TDD):B34/38/39/40/41
EU(FDD):B1/3/5/7/8/20/28
NA(FDD):B2/4/5/12/13/14/66 - Transmit Power23dbm
- Receiver Sensitivity-96 dBm @1Mbps, 30.8 %PER
-93 dBm @2Mbps, 30.8 %PER
WiFi
- Wireless StandardIEEE 802.11 b/g/n
- Network ProtocolHTTP(SSL/TLS)
MQTT(SSL/TLS & Proxy)
TCP - Wireless EncryptionWPA-PSK，WPA2-PSK,WPA-PSK/WPA2-PSK, WPA3-SAE，WPA2-PSK/WPA3-SAE, WPA-EAP，WPA2-EAP，WPA3-EAP, WPA2-EAP/WPA3-EAP
