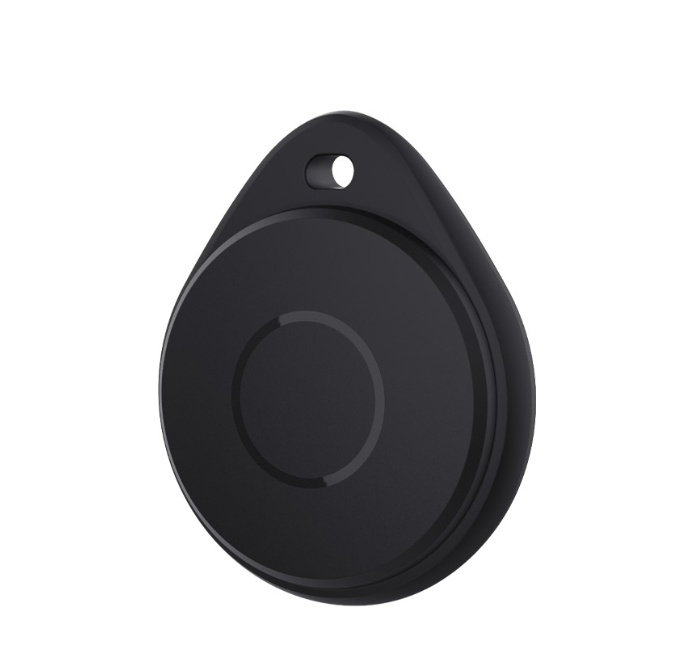

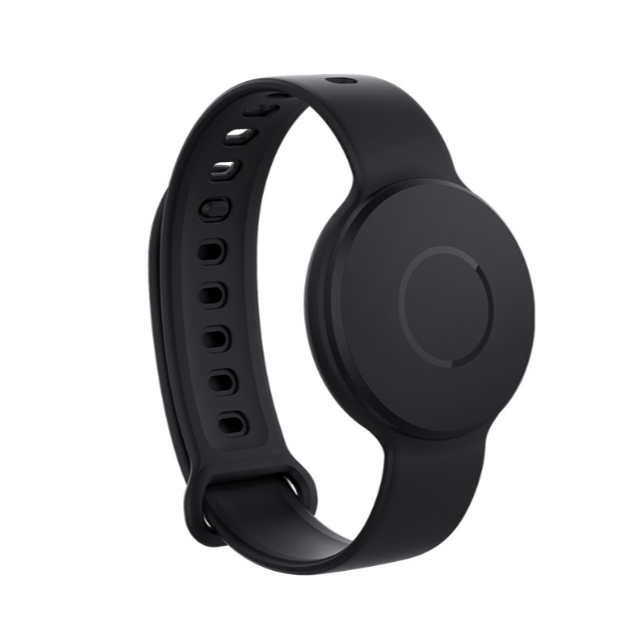

W6 Bluetooth Wristband Beacon
- Bluetooth 5.0 standard
- Nordic nRF52811 SoC
- Compatible with Eddystone and iBeacon simultaneously
- Embedded with a 3-axis accelerometer sensor
- Ultra-low power consumption Integrated RFID tag
- Replaceable CR2032 battery
- Configurable parameters in a Smartphone app for both Android & iOS, and offer an SDK (Software Development Kit).

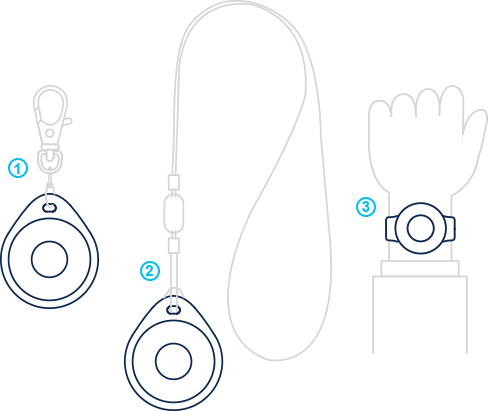

- Wearable in multiple styles to suit multiple scenarios (wristwear, keychain, or neck chain)
Description
W6 is a Bluetooth wristband beacon made to offer personnel tracking, secure access control, and flawless management services. It comes with a CR2032 replaceable battery, which can last up to 13 months on default settings due to the beacon’s ultra-low power consumption qualities. W6 Bluetooth wristband beacon is not only compatible with Bluetooth 5.1, but it also has an in-built high-end 3-axis accelerometer sensor that detects falls, movements, vibrations, and shocks.
The beacon and accelerometer framework can be easily configured to suit the ultimate needs of the application.
W6 Bluetooth wristband beacon has a maximum transmission range of 150 meters (492ft) in open areas without barriers.
Features
Firmware updates are done Over the Air (OTA)
BLE
IP67 Waterproof
Color and Logo customization (MOQ)
Replaceable battery
Pre-configuration parameters
Customer firmware programming
SOS emergency button
In-built RFID
Customized packageParameters
| Dimensions (L*W*H) | 48.9mm * 41.7mm * 12mm |
|---|---|
| Range | Up to 150 meters (492 feet) in open areas |
| Battery type | lithium coin CR2032 battery |
| Battery capacity | 220mAh |
| Default Battery lifetime | 1.5 years (Default settings*) |
| Battery replacement | Yes |
| Firmware update | Over the Air (OTA) |
| Antenna type | PCB Onboard |
| Sensors | 3-axis accelerometer sensor (optional) Mifare Classic 1k EV1 RFID or NTAG213 |
| LED | Single RED LED |
| Material | ABS+PC & TPU |
| Operating temperature | -20°C / + 60°C |
| Protocols | Eddystone & iBeacon: URL, TML and UID |
| Installation | Wrist wear, Keychain, Hang, Neck chain |
| Waterproof | IP67 |
| Button | Mechanical button |
| Main Chip used | Nordic nRF52811 |
| Certificates | USA(FCC), Europe (RoHS, CE-RED, CE-LVD, REACH, and CE-EMC) Other approvals or certifications can be customized. |
Applications of W6 Bluetooth Wristband Beacon
Amparo Technologies offers a suite of innovative features designed to enhance connectivity and efficiency in smart living environments.

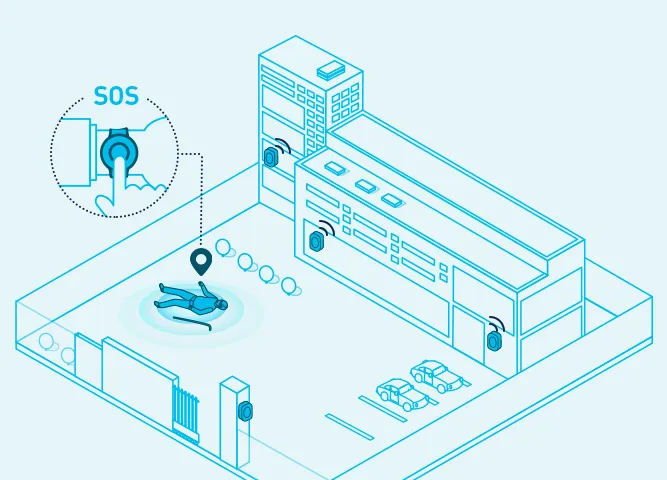

Smart Healthcare
It has an emergency SOS alarm button enabling users to initiate an immediate nurse call. W6 is merged with the MOKO gateway hence provides the precise location of users.
Access Management
Offers secure access control. It has an in-built RFID that helps in personnel recognition, flow management, etc.
Advertising
Can support up to six active slots to broadcast multiple advertising packets simultaneously and separately. Use in stores, malls, museums, and exhibitions to offer proximity promotions.
