MKGW3 Indoor PoE Gateway
MKGW3 is a BLE (Bluetooth Low Energy) to PoE (Power over Ethernet) Gateway. With support for BLE 5.0, 2.4GHz WiFi, and Ethernet, the indoor PoE gateway offers both wireless and wired connectivity options. Seamlessly connect to your cloud server via MQTT protocol.

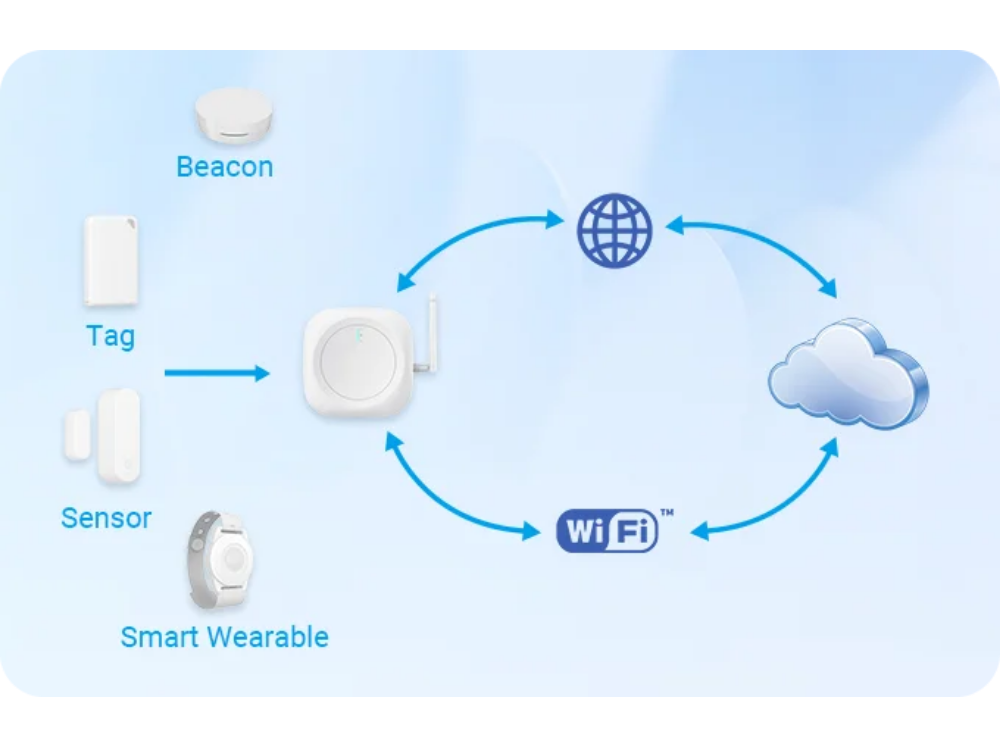

Acting as a vital data bridge between your beacon and cloud server, MKGW3 efficiently gathers nearby beacon advertising data, transmitting it to your server via WIFI or Ethernet. Plus, enjoy two-way communication with Beacon devices for remote management from the cloud. Experience cost-effective, real-time location services, condition monitoring, asset tracking, and personal safety management like never before.
Product Features
> BLE-to-Ethernet/WiFi gateway for indoor use
> Supports BLE 5.0 and 2.4GHz WiFi connectivity
> Transmits data to cloud via MQTT protocol
> POE powered with cascading up to 5 gateways
> Bi-directional communication for remote management
> Robust WiFi and MQTT encryption for security
> Compact and rugged ABS+PC casing
> Wide operating temperature range (-30°C to 50°C)
> LED indicators and physical buttons
Highlights
Flexible dual wireless and wired connectivity
The MKGW3 indoor PoE gateway supports 2.4GHz WiFi and BLE 5.0, providing two wireless options to connect to the cloud server. It also has an Ethernet port for wired connection. Dual wireless and wired options provide redundancy if one method fails.

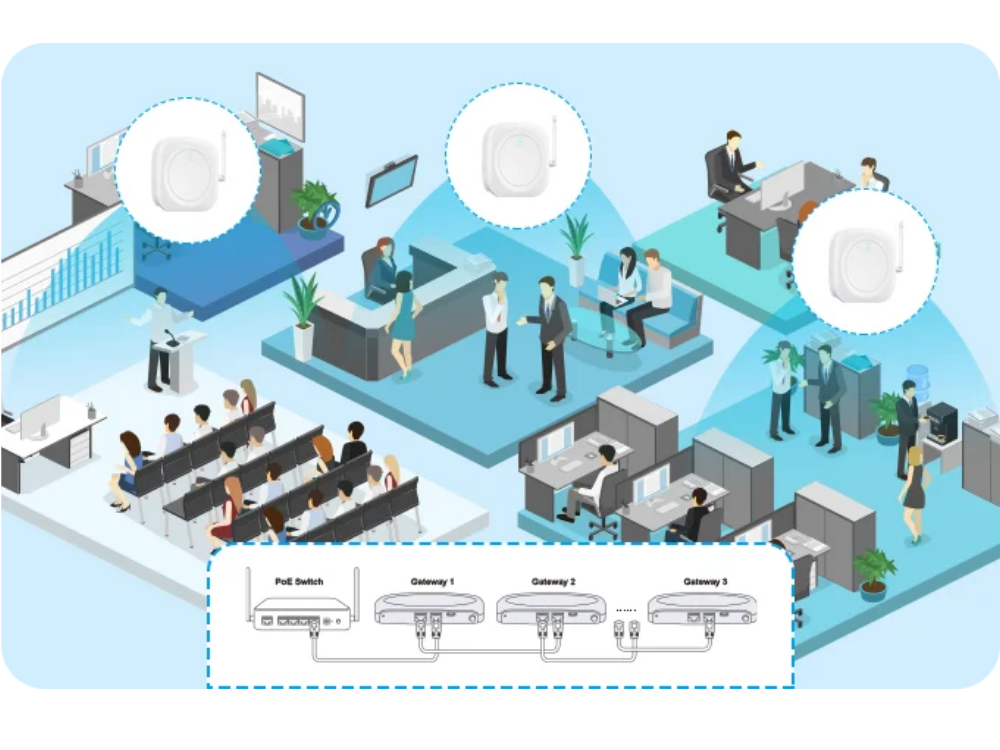

Scalable architecture through POE cascading
By integrating a POE port, up to 5 gateways can be cascaded to greatly expand network coverage and scalability. Multiple cascaded gateways provide a scalable architecture that relays data from numerous beacons to the cloud efficiently via MQTT protocol.
Remote beacon management from the cloud
The bi-directional communication implements full control and monitoring of beacons remotely from the cloud server. Beacons can be remotely configured, controlled, monitored from the cloud server. No need for physical access to beacons for management. This enables centralised management.
Applications
Mechanics
Material – ABS+PC
Colour – White
Dimension (L*W*H) – 4.72 x 4.72 x 0.89 inches (120 x 120 x 22.5 mm)
LED indicator – 3* intelligent RGB LED
Button – 1* power button and 1*reset button
Interfaces – 1*Micro USB, 1*POE in, 1*POE out
Antenna – 1* external 2.4GHz BLE antenna
Battery – 1* 1100 mAH Li-on rechargeable battery (optional)
Installation – Horizontal, hanging on wall or ceiling
Applications of MKGW3 Indoor PoE Gateway

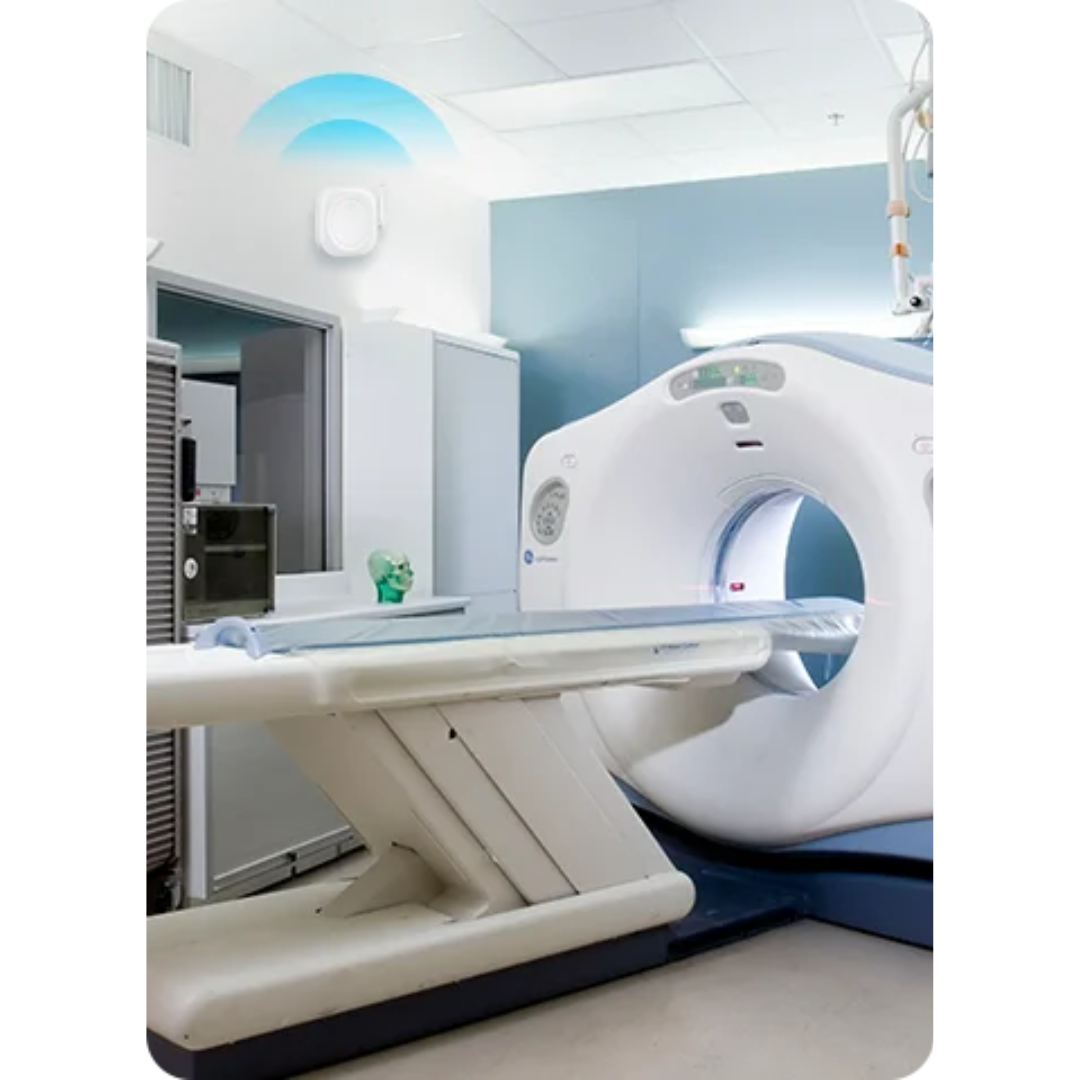

Healthcare

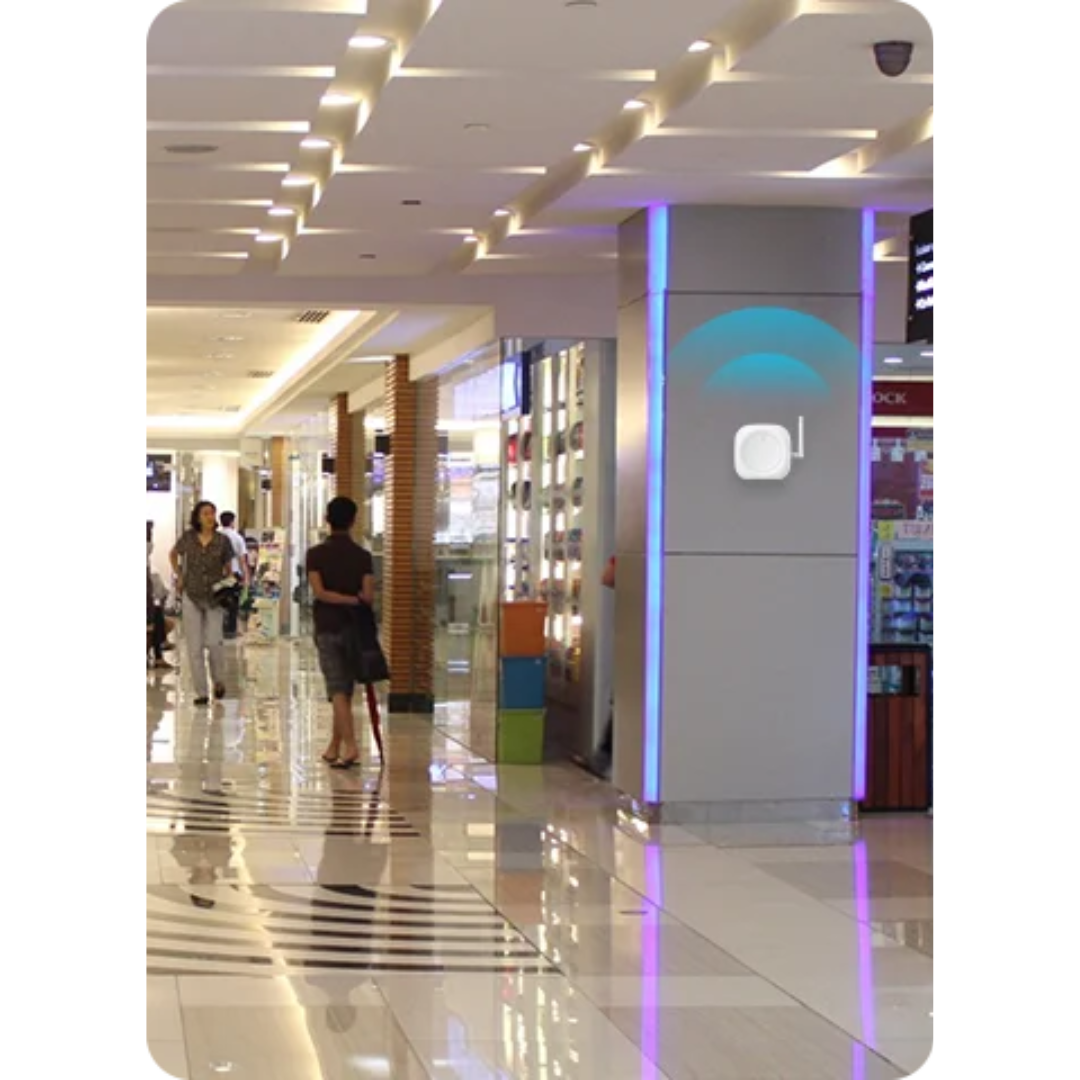

Shopping Centre

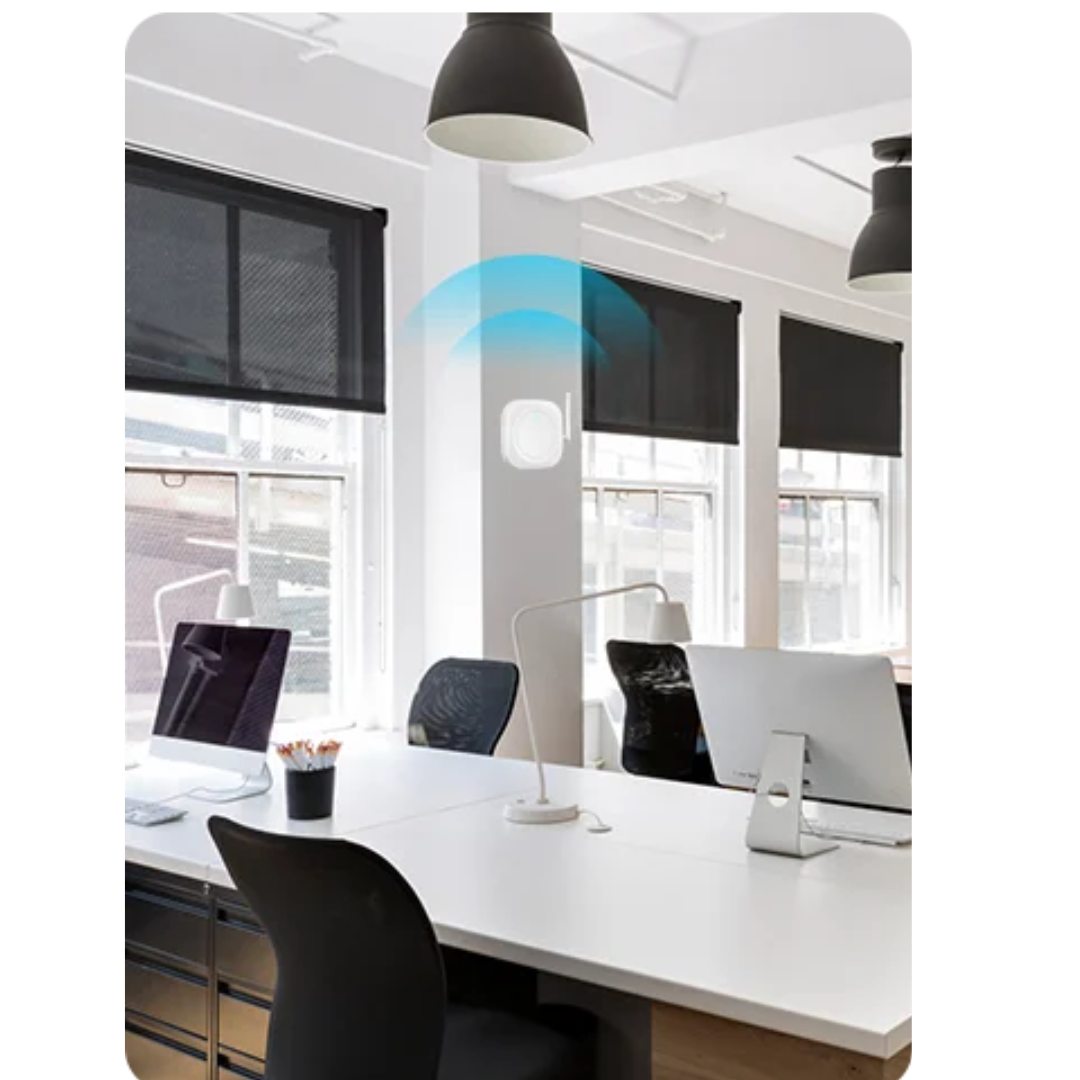

Smart Offices

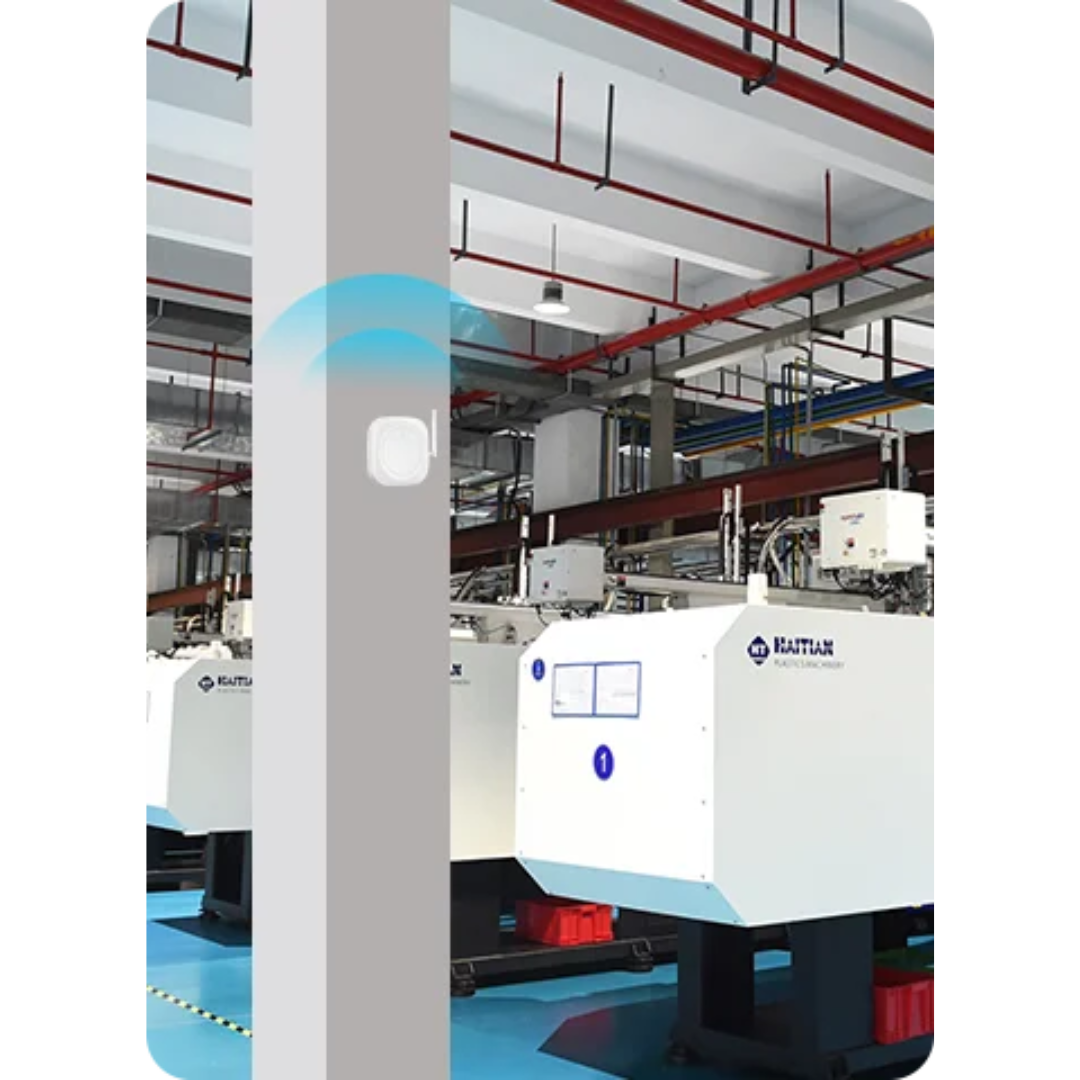

Factories
